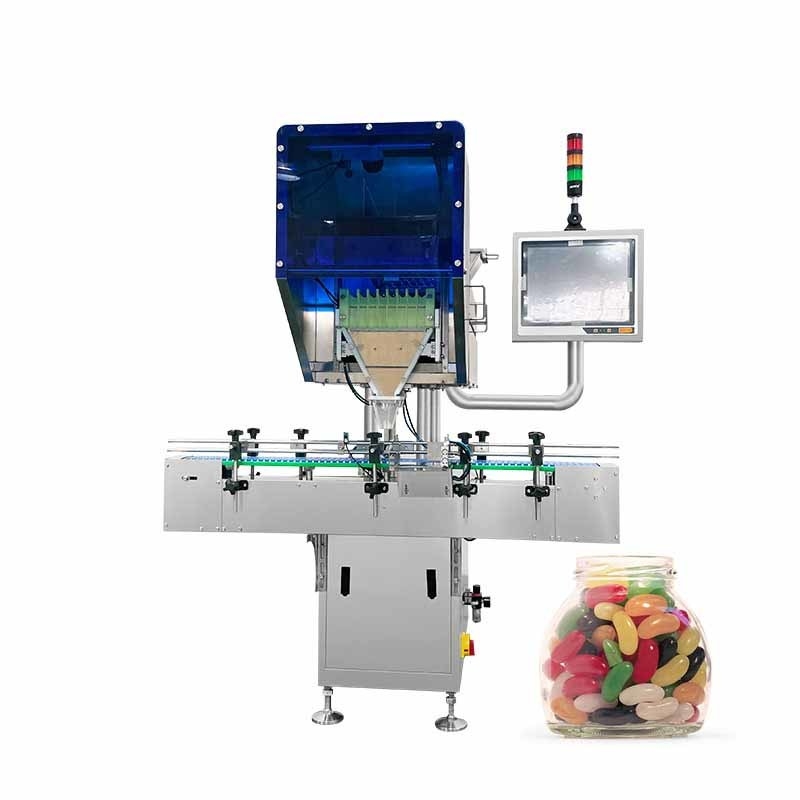

Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals

Certificat
LA CHINE Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certifications
LA CHINE Hangzhou SED Pharmaceutical Machinery Co.,Ltd. certifications
Examens de client
 Je voudrais vous remercier de tous vos efforts de choisir l'atomiseur correct pour notre dessiccateur de jet, séchage à grande vitesse. La superficie du liquide de matière première accru beaucoup après l'atomisation par le nébuliseur, 95%-98% d'humidité sera évaporée dans le flux d'air à hautes températures immédiatement, seulement la deuxième fois des besoins.

—— Fatih BÜYÜKEGEN

Je vraiment ne sais pas vous remercier, vous suis mon ange, merci beaucoup. L'extra-fin pulvérisant celui-ci est plus rapide que l'autre même machine de puissance et est facile à utiliser et réparé.

——  Hamid Doroudian

Je suis en ligne une discussion en ligne

Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals

Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals
Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals

Image Grand :  Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals

Détails sur le produit:
Numéro de modèle: SED-8SJ

Vision Counting Machine 40-80 Bottles/min 220V for Pharmaceuticals

description de
Capacité de production: 40 | 80 bouteilles/min Pouvoir: 220V, 50Hz
Nom de marchandises: Machine de comptage de vision Exactitude de comptage: ≥99,5%
Taille des bouteilles: 20-300ml Application: Industries pharmaceutique, nutraceutique et alimentaire
Quantité remplissante: 2-9999pcs/bottle (réglable)
Mettre en évidence:

pharmaceutical capsule counting machine

,

high-speed bottle counting machine 220V

,

40-80 bottles per minute counting machine

Automatic Mini Tablet Counter Vision Counting and Packaging Machine
The visual counting machine integrates advanced image processing technology with automation control technology, primarily designed for accurate counting of granular materials. This equipment is widely used in pharmaceutical, food, and chemical industries to ensure precise formulation and product packaging.
Introduction
The vision counting machine is an automatic equipment that utilizes a high-precision camera to capture images and identify granular materials through sophisticated image processing algorithms. It efficiently counts various shapes and sizes of particles including tablets, capsules, seeds, and candies.
Working Principle
  1. Material conveying: Granular materials are uniformly fed into the counting area via vibrator bowl or conveyor belt.
  2. Image capture: High-resolution camera captures materials in real-time as they pass through the counting area.
  3. Image processing: Advanced algorithms analyze and count particles in the captured images.
  4. Counting and output: Accurate counts are displayed on the operation interface or transmitted to control systems.
Major Components
  • Material supply system: Includes vibrator bowl and conveyor belt for uniform material dispersion.
  • Image collection system: High-resolution camera with lighting system for clear imaging.
  • Image processing system: Specialized software for rapid image analysis and counting.
  • Control system: Touch screen interface for parameter setting and operation control.
  • Output system: Transmits counting results to downstream equipment.
  • Intelligent detection system: Includes foreign material detection, alarm functions, and removal mechanisms.
Technical Parameters
Parameter Specification
Counting range Several granules to over 10,000 (model dependent)
Counting accuracy ±1% or better
Processing speed Varies by material characteristics and configuration
Applicable materials Various shapes including round, oval, and irregular
Power requirements 220V/50Hz (adjustable to regional standards)
Dimensions/weight Varies by model and configuration
Applications
  • Pharmaceutical industry: Tablet and capsule counting and packaging
  • Food industry: Candy and chocolate bean counting
  • Chemical industry: Precise proportioning of chemical reagent particles
  • Agricultural sector: Seed counting and packaging
Features & Advantages
High accuracy with sub-millimeter counting precision using image processing technology
High efficiency with automated operation for improved productivity
Versatile design adaptable to various material types
User-friendly touch screen interface for easy operation
Comprehensive data recording for traceability and quality control
Removable components for easy maintenance and cleaning
Operation and Maintenance
  • Operator training required before initial use
  • Regular inspection of cameras, lighting, and mechanical components
  • Periodic cleaning and lubrication per manufacturer guidelines
  • Refer to manual for troubleshooting or contact technical support
Case Presentation
Pharmaceutical company: Implemented vision counting machine for accurate tablet counting and packaging, significantly improving production efficiency and product quality.
Food processing: Customized counting solution for candy manufacturer achieved high precision counting and fast packaging requirements.
Conclusion
The vision counting machine has become essential in modern production lines due to its precision, efficiency, and versatility. Continuous technological advancements will further enhance counting solutions across multiple industries.
