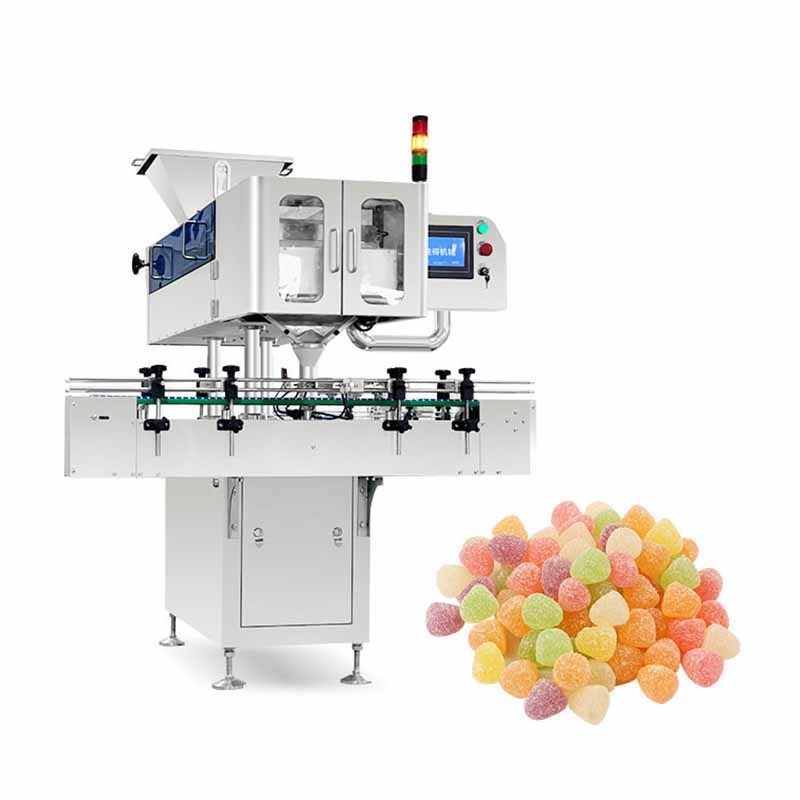

Automatic Capsule Counting Machine 16L Hopper 10-45 Bottles/Min

Automatic Capsule Counting Machine 16L Hopper 10-45 Bottles/Min
Automatic Capsule Counting Machine 16L Hopper 10-45 Bottles/Min Automatic Capsule Counting Machine 16L Hopper 10-45 Bottles/Min

Image Grand :  Automatic Capsule Counting Machine 16L Hopper 10-45 Bottles/Min

Détails sur le produit:
Numéro de modèle: SED-8SP

Automatic Capsule Counting Machine 16L Hopper 10-45 Bottles/Min

description de
Volume de trémie: 16L Capacité: 10-45 bouteilles/min
10-45 bouteilles/min: 2-9999pcs/bottle (réglable) Taille de bouteille: Diamètre ≤ 100 mm,hauteur ≤ 180 mm
Largeur de bande transporteuse: 114 mm Air comprimé: 0,6 MPa 5 L/min
Tension: 220 V / 50Hz / 60Hz Dimension hors-tout (L*W*H): Pour les appareils à commande numérique
Mettre en évidence:

automatic capsule counting machine with 16L hopper

,

capsule counting machine 10-45 bottles per minute

,

high-speed automatic capsule counter

Automatic Capsule Tablet Counting Machine for Candy Pill Packing
Machine Introduction
This updated counting machine features quick material interchangeability for multiple applications. Designed with high-speed operation and efficient hygiene functions, it significantly reduces labor requirements. The machine offers fast and easy installation to maximize productivity, particularly suited for counting and filling soft candies and sticky-textured materials.
Working Principle
The bottle blocking device on the conveyor belt positions containers for filling. Materials enter the counting device through vibrating corrugated plates, where photoelectric sensors perform accurate counting before loading into bottles at the filling position.
Technical Parameters
Model Name SED-8SP
Application Hard capsule (000-5#), Soft Gelatin capsule, Pills, Chewing gum, tablet, and solid objects (Diameter: 5.5-22mm)
Hopper Volume 16L
Capacity 10-45 bottles/min
Filling Quantity 2-9999pcs/bottle (adjustable)
Bottle Size Diameter ≤100mm, Height ≤180mm
Conveyor Belt Width 114mm
Compressed Air 0.6Mpa, 5L/min
Voltage 220V/50HZ/60HZ
Overall Dimension (L*W*H) 1920*1360*1730mm
Key Features
  • 3-stage adjustable vibration: Precisely controls capsule output speed
  • Strong compatibility: Counts tablets (including special-shaped), capsules, soft capsules (transparent/opaque), and pills
  • Quick material change: No mold changes required when switching counting objects
  • 8-channel vibration: Ensures even material discharge without damage
  • Hygienic design: Easy cleaning with removable vibration plates
  • Anti-dust system: Patented photoelectric sensor technology maintains stable operation in dusty conditions
  • Precision counting: Photoelectric sensors ensure accurate bulk counting
  • Smart detection: Includes no-bottle-no-counting, self-diagnosis, and jam detection functions
  • User-friendly: Touch screen interface for simplified operation
